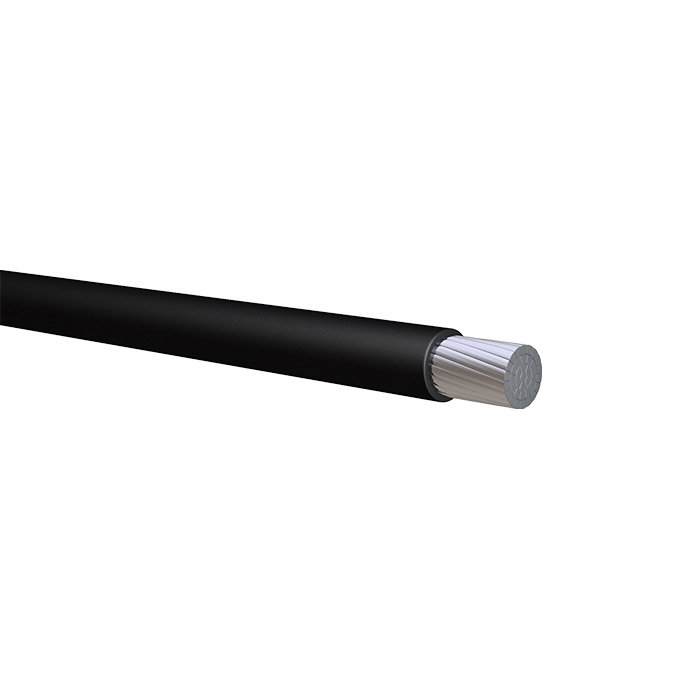

XHHW-2 Aluminum Building Wire

XHHW-2 Aluminum Building Wire Applications:

Classic Wire Low Friction type XHHW-2 is primarily used in house construction, conduit, or recognized raceways for services, feeders, and branch circuit wiring in wet or dry locations, at  temperatures not to exceed 90°C.  Voltage rating is 600V.

This product is designed to be installed without the application of pulling lubricant.

XHHW-2 Aluminum Building Wire Construction:

Conductor: Compact stranded AA-8000 series aluminum conductor material  per ASTM B800, ASTM B801, ASTM B836, ASTM B901 (Single Input Wire), as applicable.

Insulation:  The insulation is a low coefficient of friction, abrasion, moisture, and heat resistant thermoset cross-linked polyethylene.

Surface Print Legend XHHW-2 Aluminum Building Wire:

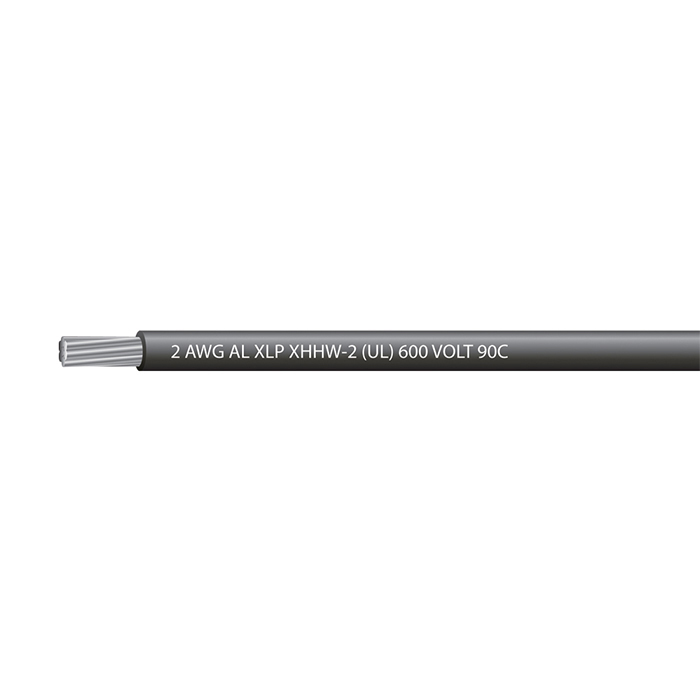

6AWG-1AWG:  CLASSIC WIRE Low Friction <Size> AWG  AA-8000  COMPACT AL CDR TYPE XHHW-2 600V SUN-RES FT2  (UL) E477302  2016 <SEQUENTIAL MARKING IN FEET>

1/0AWG-900MCM:CLASSIC WIRE Low Friction <Size> AWG/MCM  AA-8000  COMPACT AL CDR TYPE XHHW-2 600V SUN-RES FT2 for CT USE (UL) E477302  2016  <SEQUENTIAL MARKING IN FEET>

XHHW-2 Aluminum Building Wire Standards

●UL 44, UL 1581, UL 2556

●Federal Specification A-A-59544 and the requirements of the NEC

●Federal specification JC-30B NEC

●ANSI/NEMA WC 70-2009 ICEA S-95-658-2009

●CT Rated-Sizes 1/0 AWG and larger are rated for Cable Tray use.

●Sunlight Resistant in all color sizes 6AWG and larger.

●Basic Flame Rated (FT2) for sizes 6AWG and larger.

●RoHS compliant.

Production flow of XHHW-2 Aluminum Building Wire

1.What is your delivery date?

A:The delivery date is about 5-7 days after receipt of payment.

2.What are your payment terms?

A:30% deposit in advance and 70% balance before shipment.

3.Can you send free samples?

A:Yes, free samples are available; you just need to pay the shipping cost.

Our usual packaging ways for XHHW-2 Aluminum Building Wire are as followings, OR it can be as customer's request.
