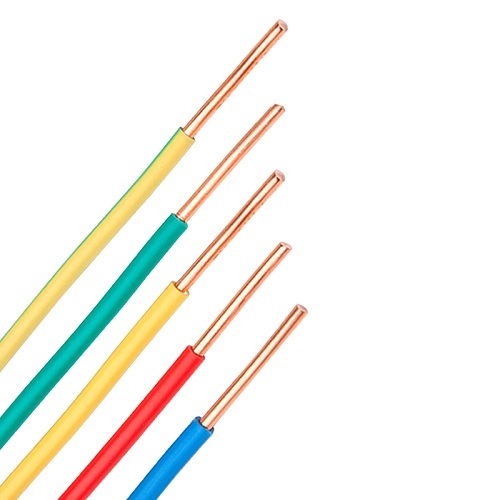

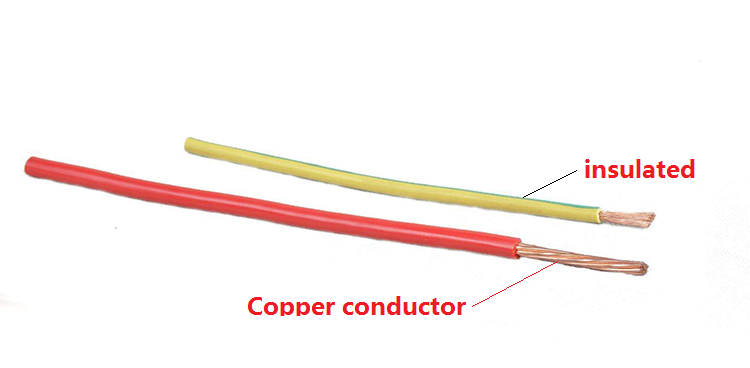

GB/T 5023.5-2008 Copper Conductor Pvc Insulated Bv Electric Wire Cable

Product Description:

PVC insulated cables and wires and cords of rated voltage up to and including 450V/750V

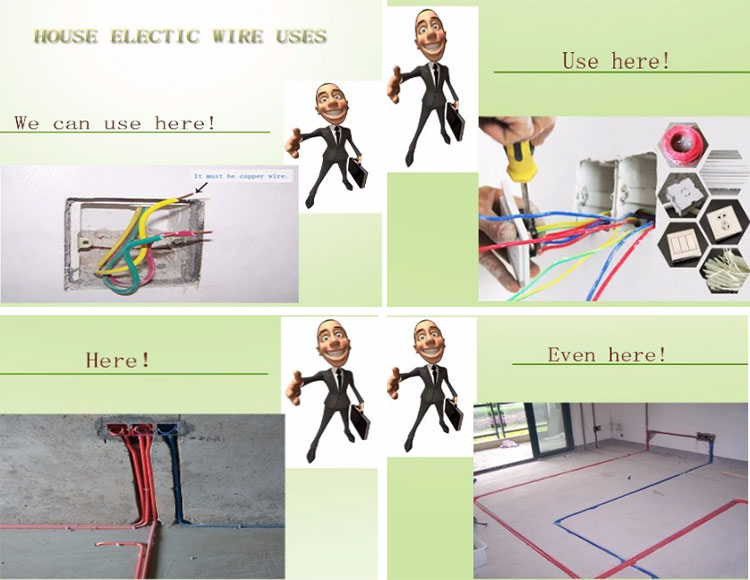

1. Application:

The product is suitable for fixed wiring. It is used in power device, household electrical PVC insulated cables and wires and cords of rated voltage up to and including 450V/750V
1. Application:
The product is suitable for fixed wiring. It is used in power device, household electrical

appliance, instrument, lighting etc with AC rated voltage up to and including 450V/750V.

2. Operating Characteristic:
1) The rated voltage U0/U: 450V/750, 300V/500V, 300V/300V
2) The long time allowable working temperature of conductor is not more than 70 °C
3) The ambient temperature for installation is no less than 0 °C. The bending radius of a cable should not be less than 4 times of cable overall diameter below 25mm and 6 times of that for cable overall diameter no less than 25mm.

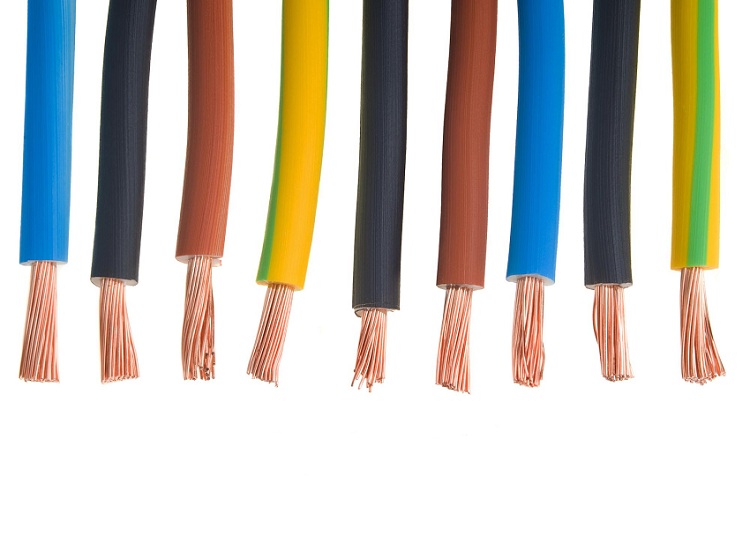

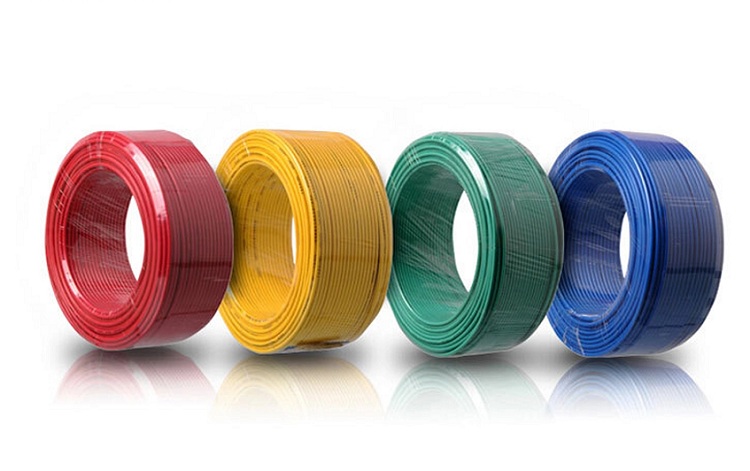

3. Multicolor optional, color customizable:

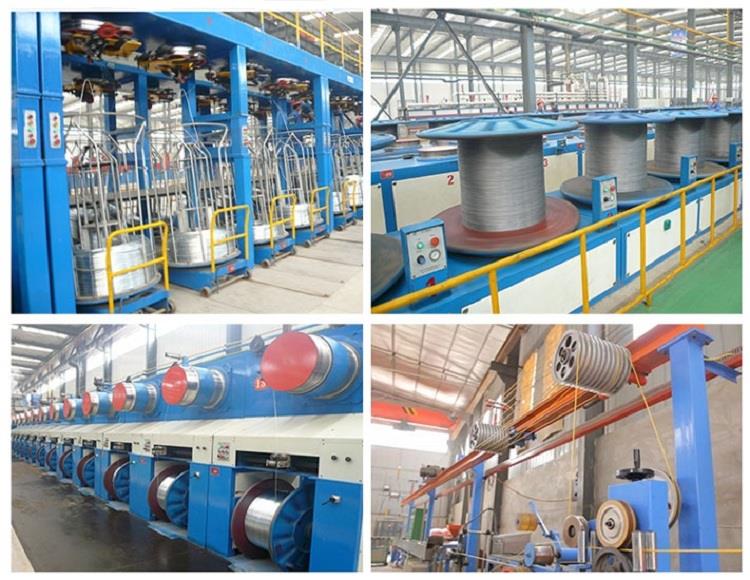

4. Our Factory:

5. Packaging & Delivery:

Packaging Details:

100 meter/roll, 50cm (L) * 50cm (W) * 20cm (H) and below
544 roll/ 20' container
1168 roll/ 40'container
1388 roll/ 40'H-container

Delivery Time: Two week after constract date.
