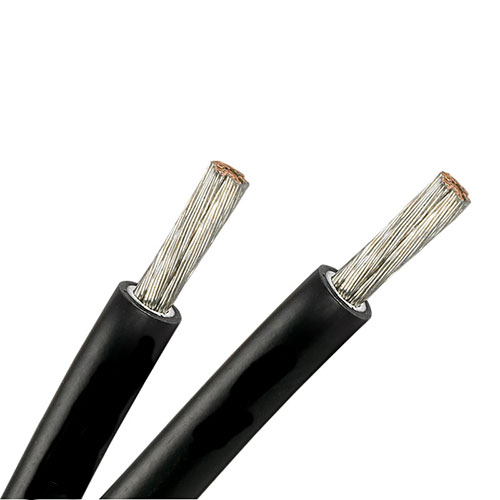

Aluminum conductor PVC insulated cables BLV-450/750V-1x35mm2.This product is suitable for linking the household electrical appliance, small electric tools, Instrument and power lighting devices with the rated voltage equal or less than 450/750V AC. The operation temperature of the wire is 90°C for BV-90 and RV-90,BV-105 model not more than 105°C,The other is 90°C.Installation temperature not lower than 0°C....
Send InquiryQuick Details:
|
Place of Origin: China(Mainland) |
Color: Accept customize |
|
Rated Voltage: 450/750V |
Application: Underground |
|
Core wire: Single aluminum |
Type: Insulated |
|
Model Number: BLV |
MOQ: 2000M |
1. Brief product introduction:
This product is suitable for linking the household electrical appliance, small
electric tools, Instrument and power lighting devices with the rated voltage
equal or less than 450/750V AC. The operation temperature of the wire is 90°C
for BV-90 and RV-90,BV-105 model not more than 105°C,The other is 90°C.
Installation temperature not lower than 0°C.
2.Type, description and range of production:
|
Category |
Descriptions |
Type |
Rated voltage |
No. of cores |
Nominal Cross .section mm2. |
|
Non-sheathed cables and wires for fixed wiring |
Single core solid conductor non-sheathed cables for common uses |
60227IEC01 (BV) |
450/750 |
1 |
1.5~400 |
|
Aluminum conductor PVC insulated cables |
BLV |
450/750 |
1 |
2.5~400 |
|
|
Copper conductor PVC insulated flexible cables |
BVR |
450/750 |
1 |
2.5~70 |
|
|
Copper conductor PVC insulated wires |
BV |
300/500 |
1 |
0.75~1.0 |
|
|
Single core solid conductor non-sheathed cables for internal wiring of equipment with conductor operating temperature of 70°C |
60227IEC05 (BV) |
300/500 |
1 |
0.5~1.0 |
|
|
Single core solid conductor non-sheathed cables for internal wiring of equipment with conductor operating temperature of 90°C |
60227IEC07 (BV-90) |
300/500 |
1 |
0.5~2.5 |
|
|
Single core flexible conductor non-sheathed cables for common uses |
60227IEC02 (RV) |
450/750 |
1 |
1.5~240 |
|
|
Single core flexible conductor non-sheathed cables for internal wiring of equipment with conductor operating temperature of 70°C |
60227IEC06 (RV) |
300/500 |
1 |
0.5~1.0 |
|
|
Single core flexible conductor non-sheathed cables for internal wiring of equipment with conductor operating temperature of 90°C |
60227IEC08 (RV-90) |
300/500 |
1 |
0.5~2.5 |
|
|
Sheathed cables for fixed wiring |
Light-duty PVC sheathed cables |
60227IEC10(BVV) |
300/500 |
1,2,3, 4,5 |
1.5~35 |
|
Copper conductor PVC insulated PVC sheathed flat cables |
BVVB |
300/500 |
2,3 |
0.75~10 |
|
|
Aluminum conductor PVC insulated PVC sheathed circular cables |
BLVV |
300/500 |
1 |
2.5~10 |
|
|
Aluminum conductor PVC insulated PVC sheathed flat cables |
BLVVB |
300/500 |
2,3 |
2.5~10 |
|
|
Flexible cables(cords) |
Non-sheathed flat cords |
60227IEC42(RVB) |
300/300 |
2 |
0.5~0.75 |
|
Cords for indoor illumination loops |
60227IEC43 (SVR) |
300/300 |
1 |
0.5~0.75 |
|
|
Light-duty PVC sheathed cords |
60227IEC52(RVV) |
300/300 |
2,3 |
0.5~0.75 |
|
|
Ordinary PVC sheathed cords |
60227IEC53(RVV) |
300/500 |
2,3,4,5 |
0.75~2.5 |
|
|
Copper conductor PVC insulated stranded cords for connecting |
RVS |
300/300 |
2 |
0.5~0.75 |

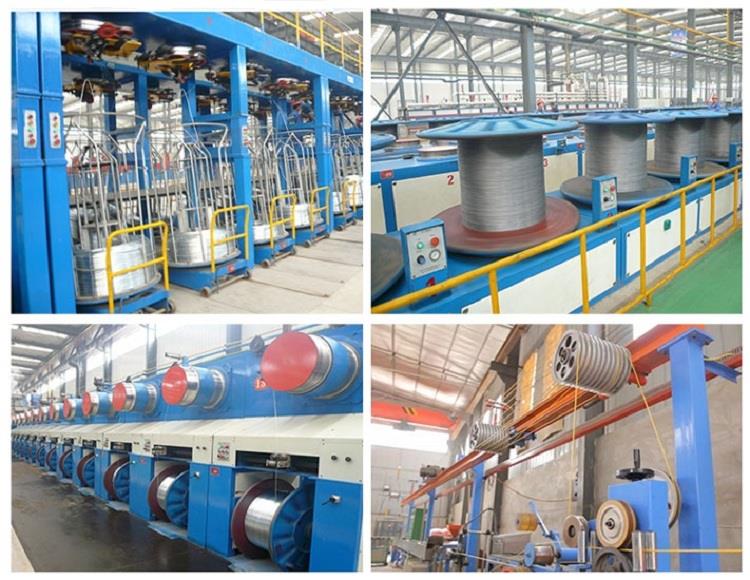

Our Factory:
Packaging & Delivery
Packaging Details:wood drum
Delivery Time:delivery on time or according to customer's request
